Caldera Spa Jets Explained: EURO-PULSE, VERSASSAGE, ADAPTASSAGE, and How to Adjust and Maintain Them

Hydrotherapy is the reason most people choose a Caldera spa, and the jets are where that experience happens. Caldera builds its seats around several distinct jet styles, each designed to deliver a different kind of massage, and it pairs them with diverter valves and air controls that let you fine-tune the pressure. Knowing which jets you have, how they adjust, and how to keep them working smoothly helps you get far more out of every soak.

This guide covers the main Caldera jet types, how to use diverters and air controls, simple maintenance for sticky jets and stiff valves, and what to consider when replacing a jet.

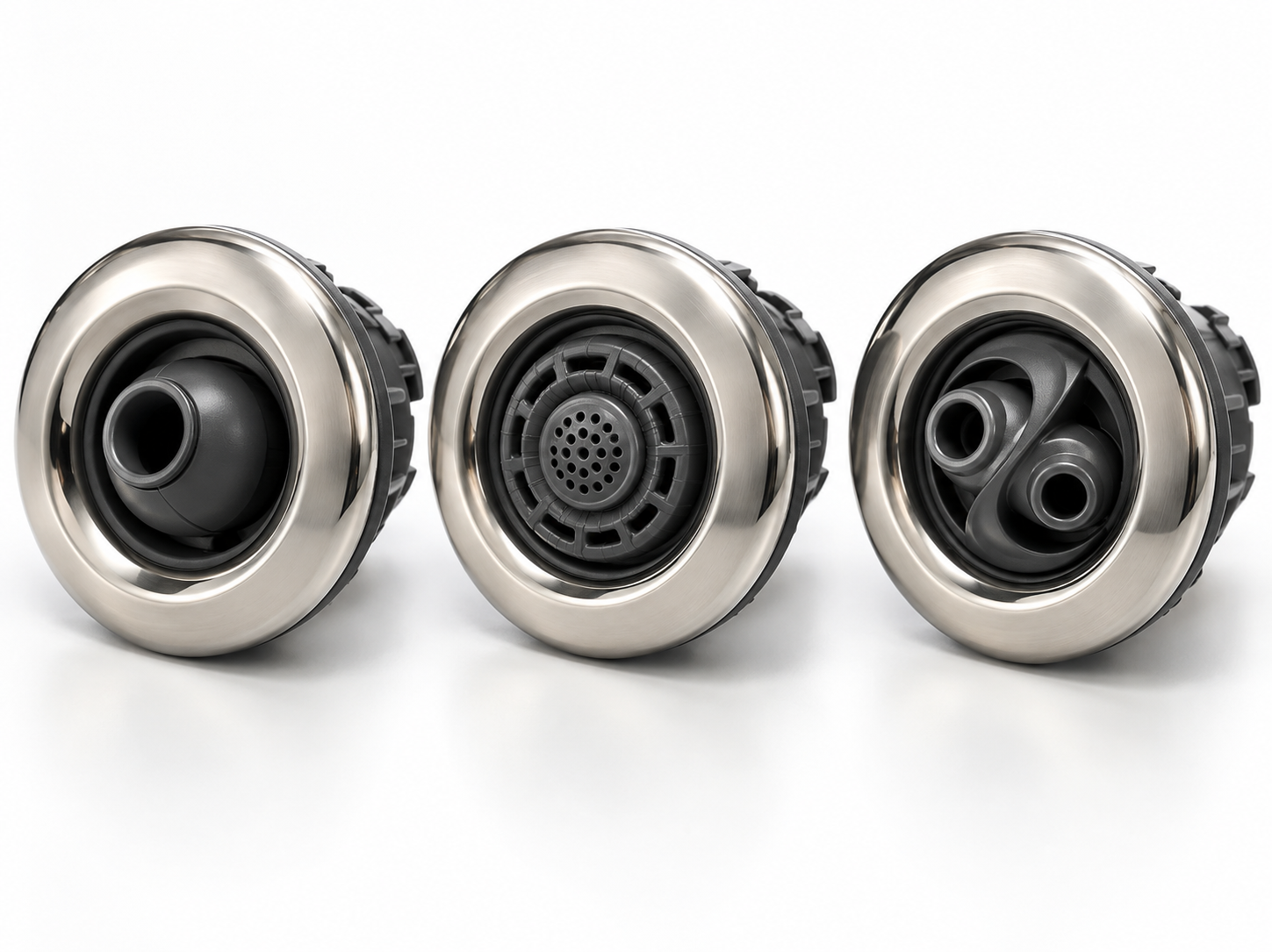

The Main Caldera Jet Types

Jet lineups vary by series and model year, so check your owner's manual for your specific spa. Caldera's Utopia Series manual describes these jet styles:

ADAPTAFLO Jets

ADAPTAFLO jets let you redirect the jet stream by changing the position of the nozzle. They are useful when you want to aim pressure at a particular spot, such as a tight shoulder or lower back.

ADAPTASSAGE Jets

ADAPTASSAGE jets provide a rotating massage pattern. Caldera notes that ADAPTAFLO and ADAPTASSAGE face plates are interchangeable, so you can customize a seat to your preference. Both styles let you regulate massage force by rotating the fascia ring.

Euro Directional Jets

Euro Directional jets use eyeball nozzles to deliver a direct, more focused massage.

EURO-PULSE Jets

EURO-PULSE jets feature a special insert that creates a soft, pulsating, rotary massage. They are a favorite for a gentler, rhythmic feel.

VERSASSAGE and ORBISSAGE Jets

VERSASSAGE jets can deliver a stationary, direct stream, or a rotating stream when you position the nozzle to one side. Force is regulated by the fascia ring: counterclockwise reduces it, clockwise increases it. ORBISSAGE jets provide a pulsating massage, can be turned fully on or off by rotating the faceplate, and are interchangeable with VERSASSAGE jets.

ATLAS Neck Jets

Utopia Series spas include four directional neck jets beneath the pillow of the EcstaSeat. Two of these nozzles sit above the waterline and can be angled for comfort, and their flow is controlled with the ATLAS neck jet valve on the inside wall of the spa.

One Important Rule: Do Not Close Too Many Jets

Turning off some adjustable jets sends more water to the others, which is a handy way to intensify pressure where you want it. But Caldera's manual is clear: to avoid damage to your spa's plumbing and components, do not turn off more than half of the adjustable jets at the same time. Closing too many restricts flow, which strains the pump and can affect heating.

Also note that Euro Directional and EURO-PULSE jets do not regulate massage force, so Caldera advises against trying to rotate their faces to adjust pressure.

Using Diverter Valves and Air Controls

Diverter Valves

Diverter valves direct water from the pumps to different groups of jets. Caldera recommends learning them by experimenting: set all air controls to on, turn on both pumps, and turn each diverter handle to see which jets respond. You can set a diverter anywhere between its two extremes.

Keep in mind that the spa is not designed to deliver full power to all jets with diverters in the middle position. If you want stronger flow with a diverter centered, close some ADAPTAFLO or ADAPTASSAGE jets you are not using, while staying within the half-of-jets rule.

Air Controls

Each jet system has its own air control, which mixes air into the water stream to change the feel and power of the jets. More air generally produces a more vigorous, bubbly massage. Caldera suggests turning both pumps on, setting diverters to the middle, and trying each air control to learn its effect. Closing air controls when the spa is not in use also helps limit heat loss.

Maintaining Your Jets and Valves

Cleaning Sticky or Slow VERSASSAGE Jets

If a VERSASSAGE jet spins slower than it used to, or sticks, deposits have likely built up inside the jet bearing. Caldera's manual outlines this process:

1. With the spa off, rotate the jet face counterclockwise until it stops.
2. Apply a little extra force to rotate it further counterclockwise past the locking position, then pull the face and body away from the spa.
3. Flush the bearing with water and spin the rotating eye. It should spin freely.

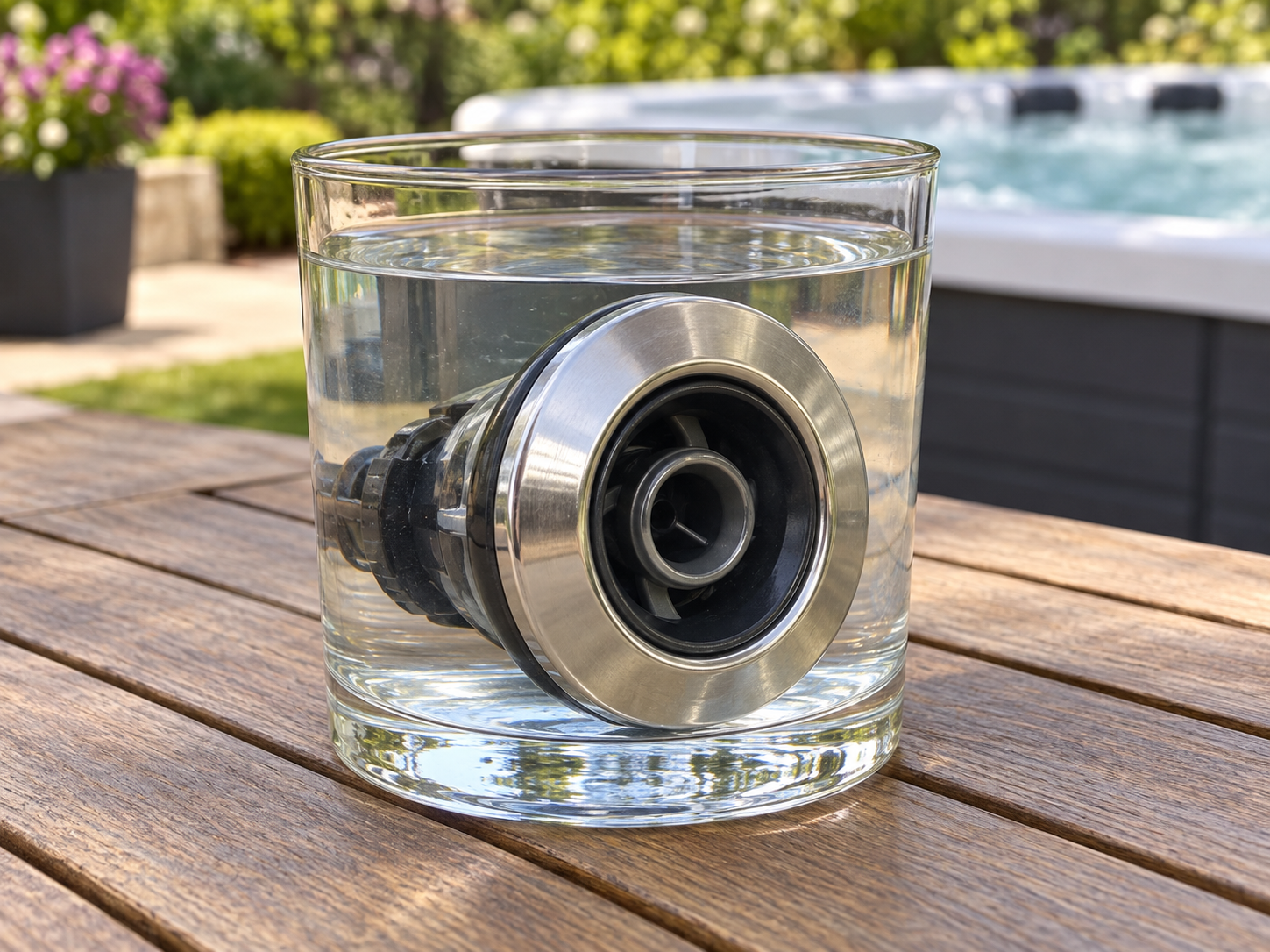

4. If it does not, soak the bearing end in a cup of white vinegar overnight to soften deposits, then flush and test again.
5. A second night of soaking may be needed. If it still will not spin, the jet may need replacement.

Freeing a Stiff Diverter Valve

A diverter valve that becomes hard to turn usually has sand or grit inside the valve body. Caldera stresses removing that debris promptly to avoid damaging the valve. The manual's steps:

1. Turn off power to the spa by tripping both GFCI breakers in the subpanel.
2. Unscrew the cap ring to remove the diverter handle.
3. Pull the valve body straight up to remove it.
4. Wipe the valve body and the interior walls of the valve clean.
5. Lubricate the O-rings with a waterproof lubricant.
6. Reassemble and restore power.

Preventing Buildup in the First Place

• Keep calcium hardness, pH, and alkalinity in range to reduce scale inside jets.
• Rinse sand and debris off feet before entering the spa, especially if the spa is near a pool or garden.
• Keep filters clean so fine grit is captured before it reaches jets and valves.
• Run every jet periodically, even ones you rarely use, so parts keep moving freely.

Replacing a Caldera Jet

Jet inserts and faces do wear out, crack, or lose their rotation over time. Replacement is often straightforward, since many Caldera jet faces are removed by rotating them past their stop and pulling them out, but the exact method varies by jet style. ADAPTASSAGE faces, for example, are turned counterclockwise until they stop, then turned once more until they click, pushed in, and pulled straight off.

When ordering, match the jet style, size, and color to what is in your spa, and confirm compatibility with your model and year. If a jet body itself is leaking or damaged in the shell, that is a more involved repair best handled by a technician.

Jets, Pumps, and Energy Use

Your jets and your electric bill are more connected than they might seem. Every jet runs off a jet pump, and running pumps on high for long periods uses more energy and adds heat to the water through friction. Open air controls also pull in cooler outside air, which the heater then has to make up for. None of this means you should hold back on hydrotherapy, but a few habits help. Close air controls when you finish a soak, turn pumps off rather than leaving them running with the cover on, and use diverters to focus flow on the seats in use instead of running every jet at full power. Keeping filters clean matters here too, because a clogged filter forces the pump to work harder to push the same amount of water through the jets.

If a jet pump sounds louder than normal, surges, or seems weaker even with clean filters and a proper water level, have it checked. Catching a worn pump seal or bearing early usually costs far less than replacing a failed motor.

Getting the Best Massage From Your Seat

With so many options, it pays to spend a few sessions experimenting. Try a seat with the diverter fully to one side, then the other, then centered. Adjust air controls from off to fully open. Swap interchangeable faces between ADAPTAFLO and ADAPTASSAGE, or between VERSASSAGE and ORBISSAGE, to find the feel you like best in your favorite seat. Once you find a combination you love, note the settings so everyone in the household can enjoy their own ideal soak.

Frequently Asked Questions

What is a Caldera EURO-PULSE jet?

EURO-PULSE jets use a special insert to create a soft, pulsating, rotary massage. They do not regulate force, so do not try to rotate the face to adjust pressure.

Why is my Caldera jet not spinning?

Mineral deposits in the jet bearing are the usual cause. Remove the jet, flush it, and if needed soak the bearing in white vinegar overnight. If it still does not spin freely, replace the jet.

How many jets can I turn off at once?

Caldera recommends never turning off more than half of the adjustable jets at the same time, to protect the plumbing and components.

Why is my diverter valve hard to turn?

Sand or grit is usually lodged inside the valve body. With power off, remove the handle and valve body, clean everything, lubricate the O-rings with a waterproof lubricant, and reassemble.

Can I swap jet faces between seats?

Some can. Caldera notes that ADAPTAFLO and ADAPTASSAGE faces are interchangeable, as are VERSASSAGE and ORBISSAGE jets. Check your manual for the jets in your model.

Caldera's jets are designed to be adjusted, swapped, and personalized, and a little maintenance keeps them that way. Learn your jet styles, respect the half-of-jets rule, keep diverters clean and lubricated, and give sticky jets a vinegar soak when they slow down. Your Caldera will keep delivering the massage you bought it for.
