Caldera Spa Troubleshooting: What the Logo Lights Mean and How to Fix Common Problems

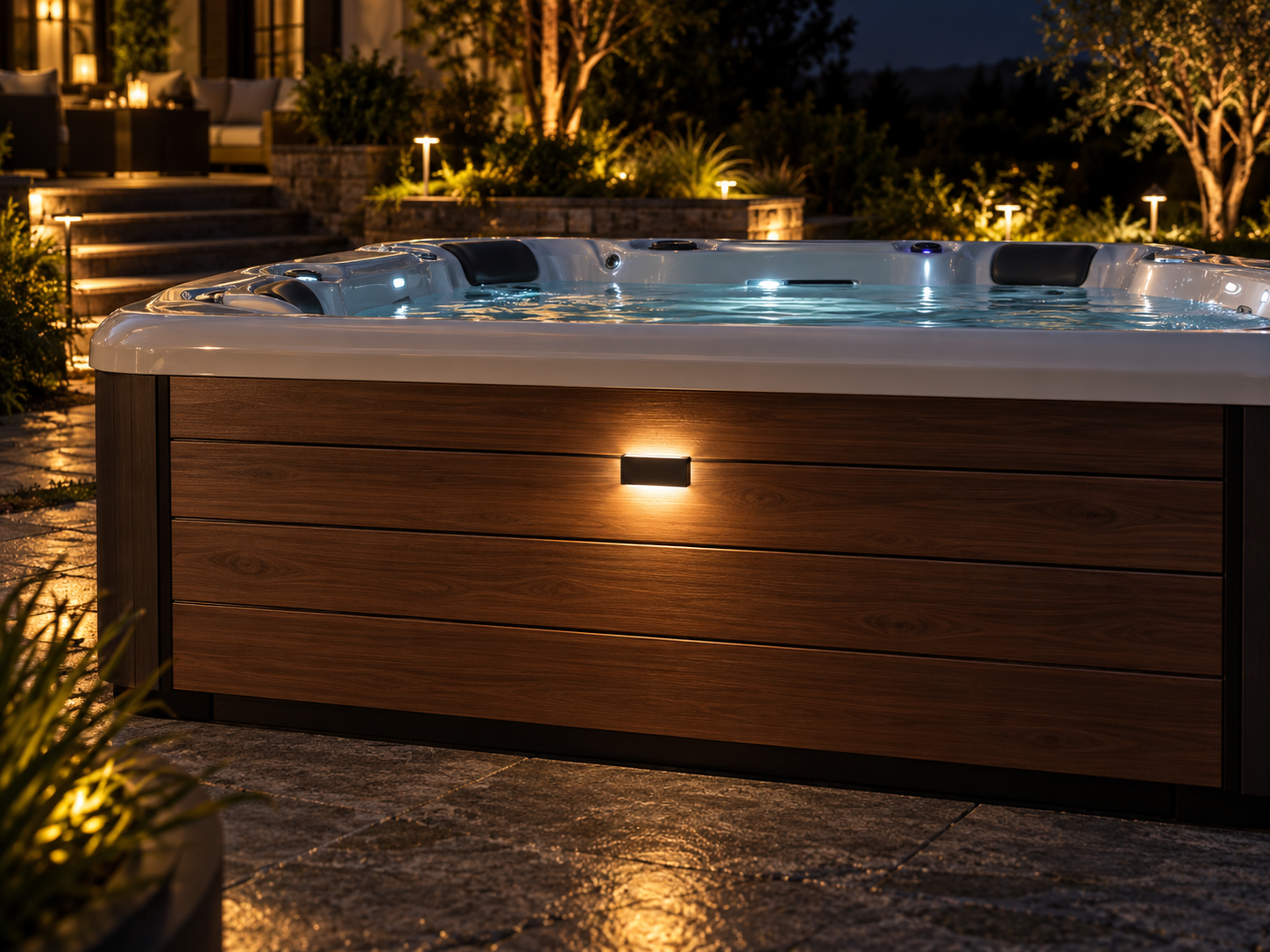

Caldera spas have a built-in way to tell you something needs attention before you even lift the cover. On many models, the Caldera logo on the front of the cabinet doubles as a status display, glowing in colors that show whether the spa has power, whether the water is ready, and whether something has gone wrong. Learning to read it turns many service calls into quick fixes you can handle yourself.

This guide explains what the logo lights mean on Caldera models that use them, then walks through fixes for the most common problems: a spa that will not heat, weak jets, a pump that runs without moving water, and a spa that will not turn on at all.

How the Caldera Logo Light Works

On Utopia Series spas, and other models with the diagnostic logo light, the logo illuminates in orange and gray. Caldera's owner's manual describes them this way. Check your own manual, since indicator behavior can vary by series and year.

Orange: The Ready Indicator

• Steady orange: The water is within 2 degrees F of your set temperature and ready to use.
• Orange off: The water is outside that 2 degree range, such as after you change the set temperature or add fresh water.
• Flashing orange: There may be a problem with the temperature sensor.
• Orange on for 1 second, off for 3 seconds: There is an issue with the salt system, on spas equipped with one.

Gray: The Power Indicator

• Steady gray: The spa is properly supplied with power.
• Flashing gray: The heater's high-limit thermostat has tripped, meaning the water is above its acceptable range or there is a flow problem such as clogged filters.
• Gray off: There is a problem with the control box or the power supplied to the spa.

Problem: The Spa Is Completely Off

If there are no lights and nothing responds, Caldera's troubleshooting guide lists power failure, a tripped GFCI, a tripped high-limit thermostat, or an activated spa lock as the likely causes.

1. Check whether there is a power outage or a tripped breaker in your home's main panel.

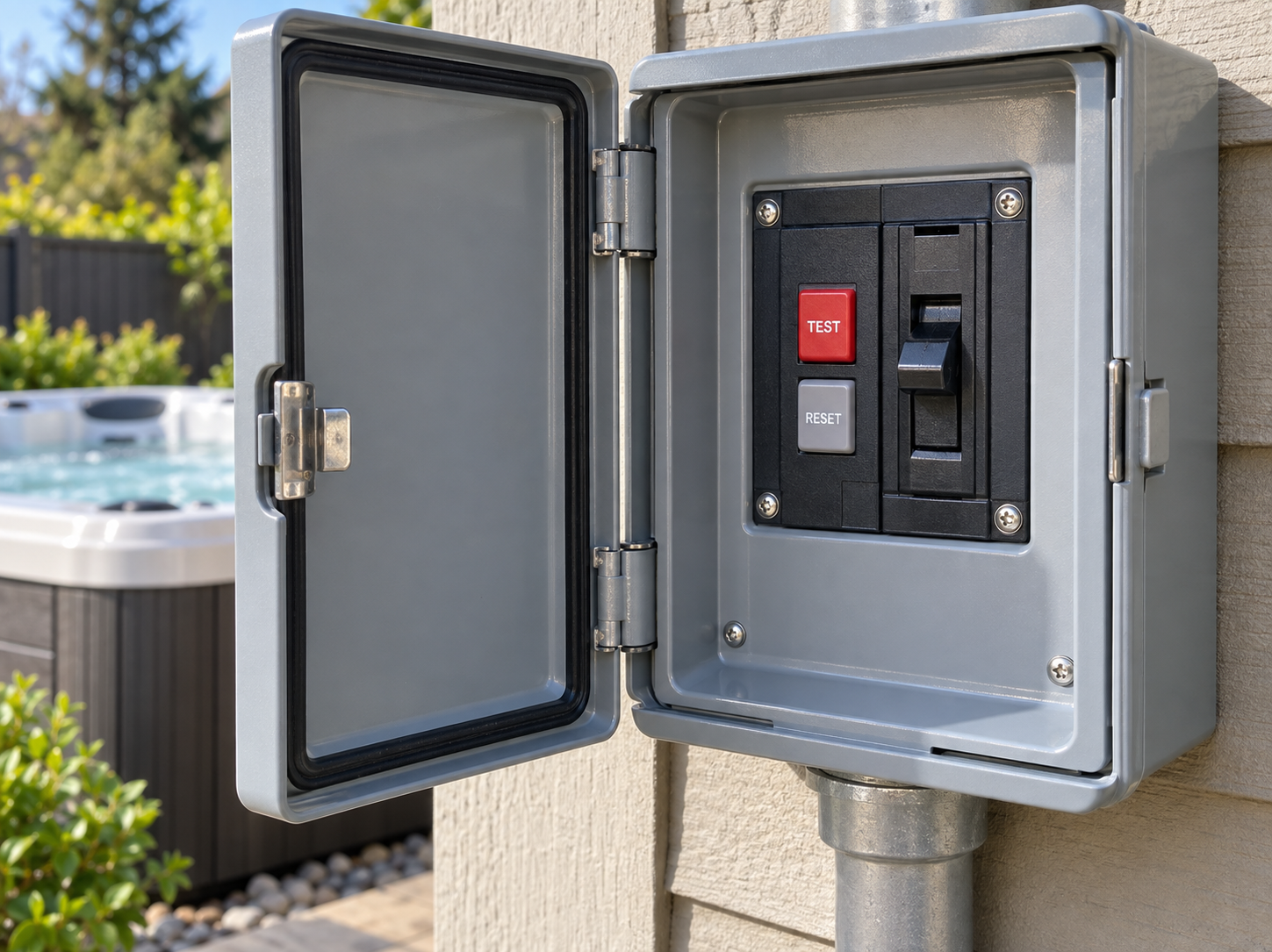

2. Check the GFCI breaker in the spa's subpanel and reset it if tripped. If it will not reset, call for service, since that can indicate a ground fault.
3. Disconnect power for at least 30 seconds to reset the high limit.
4. Make sure a spa lock has not been activated on the control panel.

Problem: Flashing Gray Light (High Limit Tripped)

A flashing gray light means the high-limit thermostat has shut the heater down to protect it. Disconnect power for at least 30 seconds to reset it. If it trips again, the usual cause is reduced water flow. Caldera's manual lists these common culprits:

• Clogged filter cartridges
• A blockage in the system plumbing
• A circulation pump that is not working properly
• Power left on while the spa was drained
• An air lock in the plumbing lines

Clean the filters first, since that solves the problem most often. If tripping continues after filters are clean and air is purged, call for service.

Problem: Spa Will Not Heat, but Jets and Light Work

If the orange and gray lights are both blinking and the spa is not heating, but the pumps and light still operate, Caldera's guide points to two possibilities.

The Integrated Pressure Switch Is Open

The heater has a pressure switch that only allows heating when water is flowing through it. It opens when flow is restricted by a clogged filter, a plumbing blockage, an air lock, a circulation pump problem, or draining with power on. Once flow is restored, the switch closes on its own and the heater comes back on. Call for service if the heater trips frequently.

The Circulation Pump Thermal Cut-Off Has Tripped

Caldera's circulation pump is a dedicated, water-cooled, energy-efficient pump that provides continuous filtration. Because it relies on water for cooling, it has a thermal cut-off to protect it from running hot. To reset it, disconnect power and allow the pump to cool, then restore power. Address the cause, which is typically clogged filters or an air lock, so it does not trip again.

Problem: Flashing Orange Light (Sensor)

A flashing orange light that does not clear points to a temperature sensor issue. Disconnect power for at least 30 seconds. If the light continues blinking after power is restored, call for service. Sensor diagnosis involves the control box, which has no user-serviceable parts.

Problem: Salt System Flash Pattern

If your Caldera has a FreshWater salt system and the orange light flashes on for 1 second and off for 3, go to the salt system menu on the control panel and check the error code. Caldera's manual walks through each code. Common fixes include confirming the salt level with a FreshWater salt test strip, confirming a salt cartridge is installed, and inspecting the cartridge for damage. If the salt level is well above the target, a partial or full water change may be needed. Follow the steps in your manual for your specific code.

Problem: Pump Runs but No Water Flows

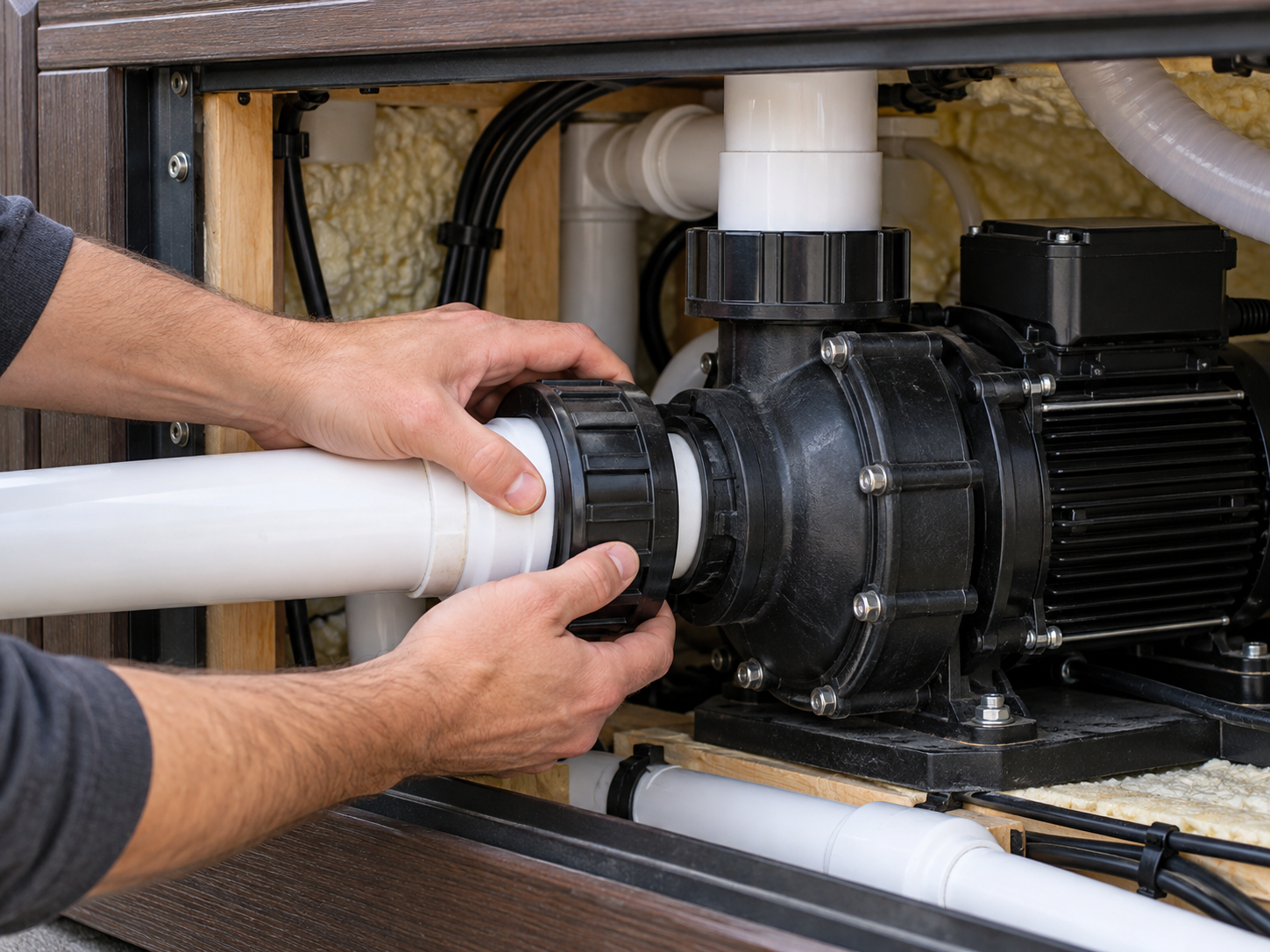

If you can hear a pump running but water is not coming from its jets, especially right after a refill, the pump likely has an air lock. Caldera's fix:

1. Turn off power to the spa at the breaker and remove the equipment compartment door.
2. Loosen the union on top of the pump to let trapped air escape.
3. Hand-tighten the union again.
4. Restore power, run the pump, and confirm the union is tight enough not to leak.

Problem: Weak or Surging Jets

Weak jets usually come down to three things: water level too low, clogged filters, or closed air valves. Caldera recommends keeping water about 1 inch above the highest jet. Also check that you have not closed more than half of the adjustable jets, that suction covers and the skimmer basket are clear, and that no individual jet is blocked. A noisy pump often means the water level is too low as well.

Problem: Pump Will Not Run at All

The jet pump has a motor overload protection that shuts it off if it gets too hot. Caldera advises letting it cool for about an hour, after which it resets automatically. If the problem continues, or if the jet symbol does not come on when you press the button, contact a Caldera service provider.

Building a Simple Prevention Routine

Most of the problems in this guide trace back to a short list of causes: dirty filters, low water, air in the lines, and unbalanced chemistry. A light weekly routine prevents nearly all of them. Glance at the logo light each time you walk past the spa. Check the water level and top it off so it stays about 1 inch above the highest jet. Rinse filters on the schedule in your owner's manual and deep clean them at every water change. Test water chemistry at least weekly and correct it promptly. After every refill, run the jets on high to purge air before you walk away.

It also helps to keep a short log near the spa or on your phone with the dates of water changes, filter cleanings, and any indicator light events. If you do need a service visit, that history helps the technician diagnose the problem faster.

When to Call a Professional

Call for service if a GFCI will not reset, if water is leaking from the equipment area, if the high limit or pump cut-off keeps tripping after you have cleaned filters and purged air, or if the sensor light will not clear. Never open the control box yourself.

Frequently Asked Questions

What does a flashing gray light mean on a Caldera spa?

It means the heater's high-limit thermostat has tripped. Disconnect power for 30 seconds to reset it, then check for clogged filters or an air lock if it trips again.

What does a flashing orange light mean on a Caldera spa?

A steady flash usually points to a temperature sensor problem. A pattern of 1 second on and 3 seconds off indicates a salt system issue on spas equipped with one.

Why is my Caldera spa not heating?

The most common causes are restricted flow from dirty filters or an air lock, which opens the heater's pressure switch, or a tripped circulation pump thermal cut-off. Clean filters, purge air, and reset power.

Why do I hear the pump but see no water from the jets?

That is a classic air lock. With power off, loosen the union on top of the pump to release air, hand-tighten it, and restore power.

The Caldera logo light is one of the most useful features on your spa, as long as you know how to read it. Steady lights mean all is well, flashing gray points to flow, flashing orange points to a sensor or salt system, and most fixes start with clean filters and purged air. Keep this guide handy, and you will solve most issues in minutes.
